Using the SSD1306 OLED display over I2C.
Components
- 1x SSD1306 Display
Instructions

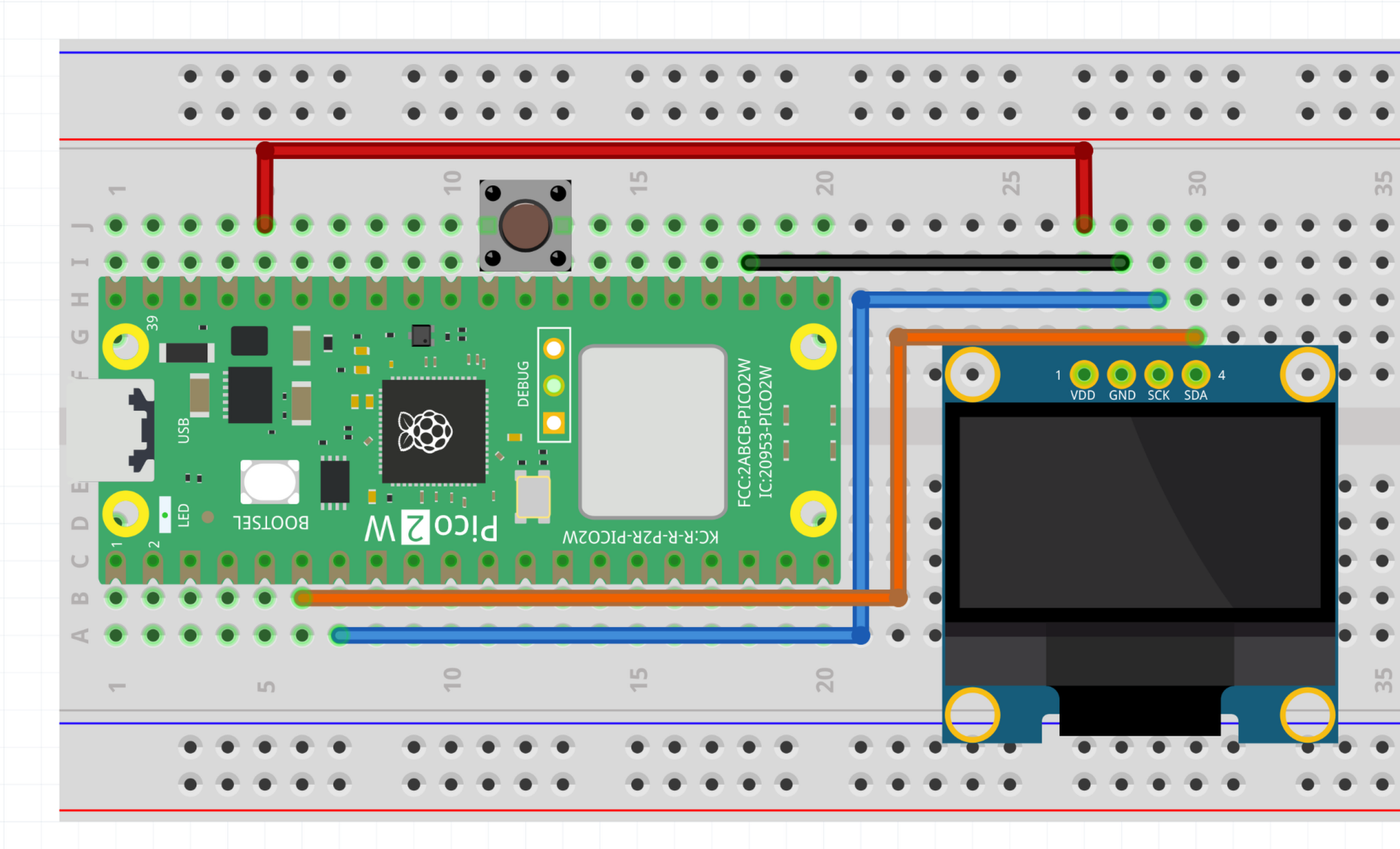

Connect the VCC and GND on the display to the 3.3v and GND pins on the Pico. Connect SCL (Serial Clock) to GP05 and SDA (Serial Data) to GP04.
Upload the ssd1306_i2c.cpp file to the Pico and watch the display print text, draw lines and flash on and off.
Info
This display works using Inter-Integrated Circuit (IIC → I2C). It uses two data wires: a clock and data. The protocol is command based; every time the Pico needs to tell the display something, it sends it a command with some attached data.
A useful feature of I2C is that it is address-based. This means over a hundred different peripherals can share the same two data wires, as long as they each have a unique address.
I2C does not have as high data rates as SPI.
Exercises
Exercise
Mess around with the
mainfunction. See if you can edit the text that gets displayed, or draw some shapes with theDrawLinefunction.
Exercise
Integrate the display with an input component you have previously used.
- Print text depending on whether a button is being pressed.
- Print text showing the voltage measured from the ADC with a potentiometer.
